Convey unit & truck loading station - The Netherlands

For Bentum Recycling in The Netherlands we supplied a pneumatic conveying unit and truck loading station.

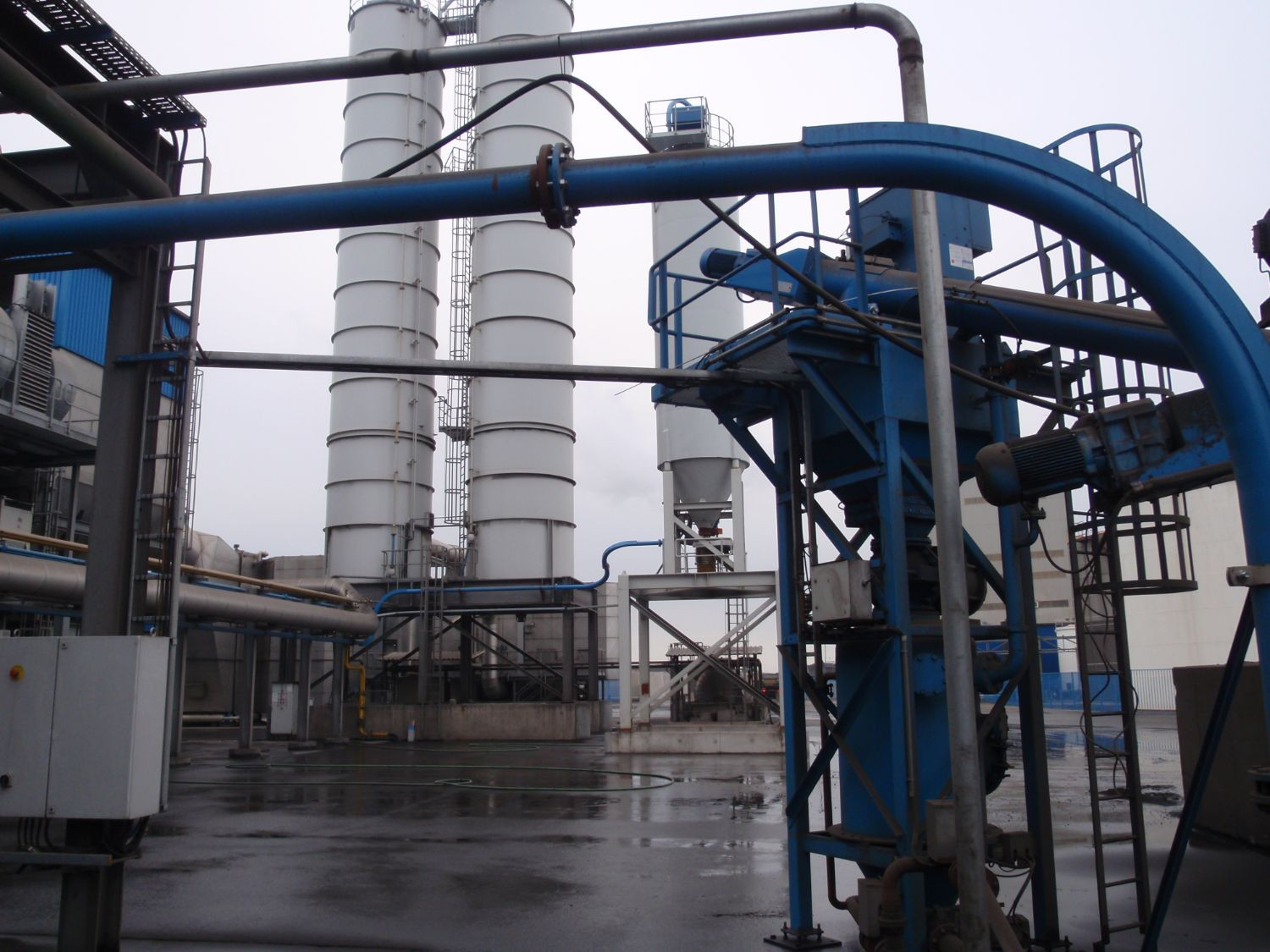

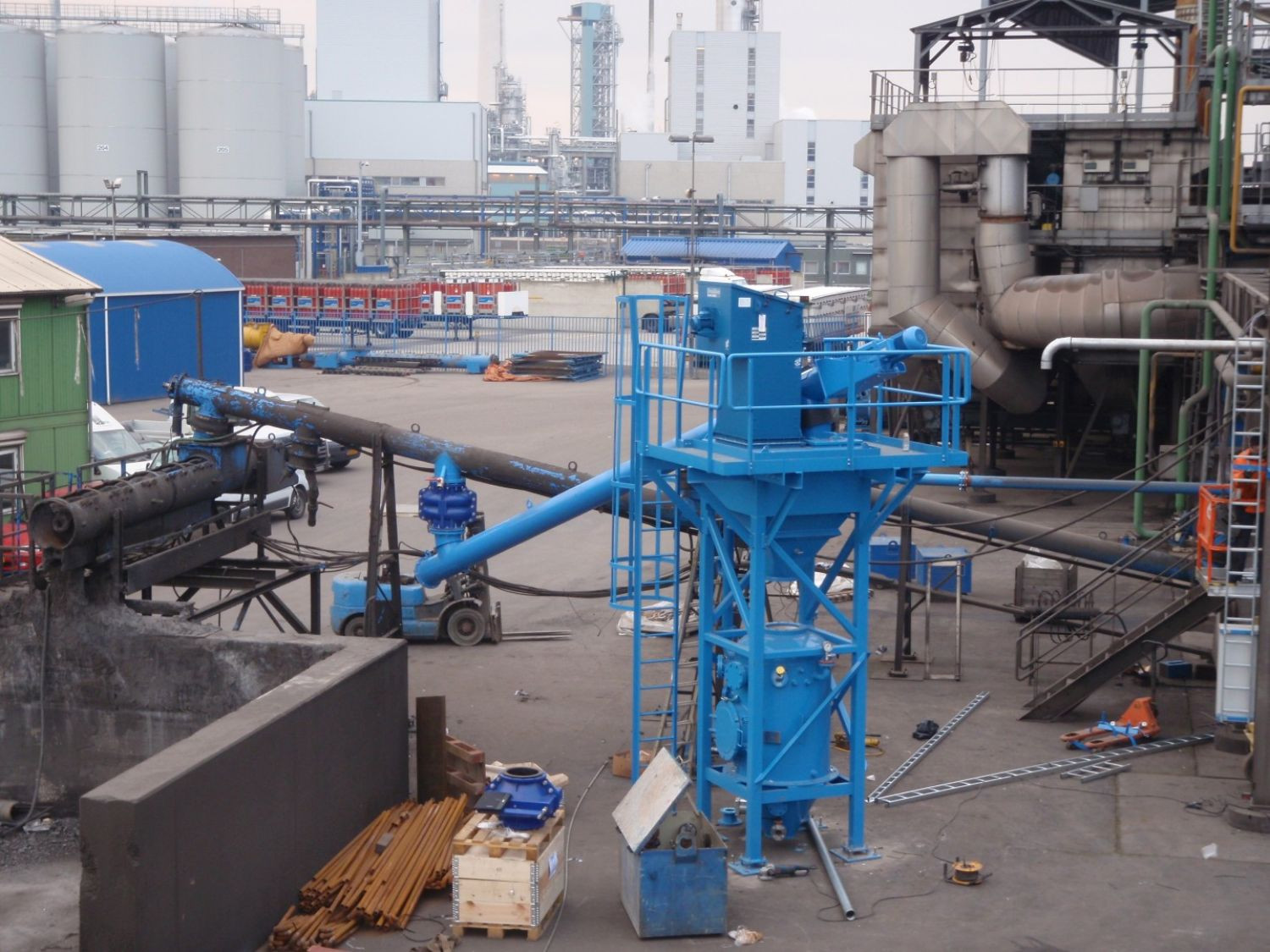

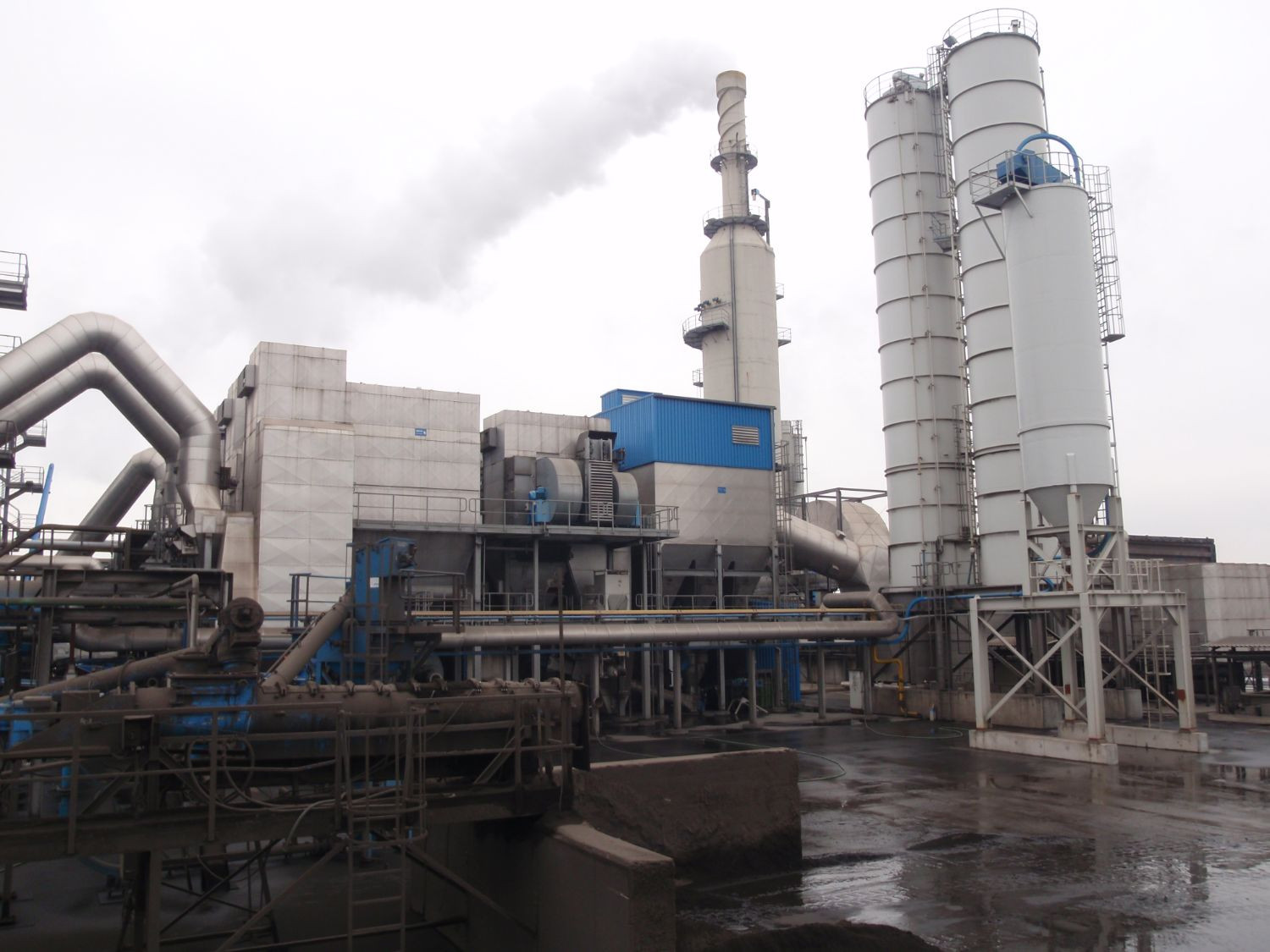

The convey unit and truck loading station are designed to handle ceramic dust. The convey unit consists of a infeed hopper and transfer kettle. The ceramic dust is fed into the infeed hopper by a screw conveyor. The convey unit pneumatically conveys the dust towards the use bin of the truck loading station. A loading bellow is fitted underneath the cone section of the use bin. Both the convey unit and the truck loading system are fitted with vent filters for dedusting of convey air.

System data:

  • Type: VACU/30/E & VATL/30
  • Capacity: 30 mtph
  • Convey length: 75 m
